KY TYPE 6, John Crane TYPE 6, PAC-SEAL TYPE 16, US SEAL TYPE A, SEALOL TYPE 6, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5MPa
Speed: ≤ 12 m/Sec

Download KY TYPE 6, John Crane TYPE 6, PAC-SEAL TYPE 16, US SEAL TYPE A, SEALOL TYPE 6, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

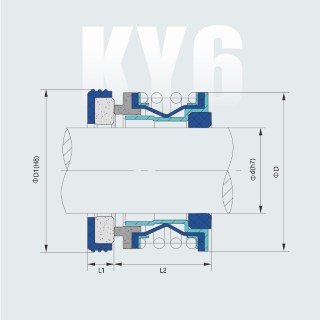

Part Numbers d D D1 L1 L2
KY TYPE 6-3/8"A 9.53 23.8 22.23 6.35 16.08
KY TYPE 6-3/8" 953 26.97 25.4 7.93 16.86
KY TYPE 6-1/2"A 12.7 26.97 25.4 6.35 16.86
KY TYPE 6-1/2" 12.7 26.97 254 7.93 16.86
KY TYPE 6-5/8" 15.88 30.94 31.75 10.31 18.44
KY TYPE 6-3/4" 19.05 34.11 34.93 10.31 18.44
KY TYPE 6-7/8" 22.23 42.85 41.28 11.1 20.82
KY TYPE 6-1" 25.4 42.85 41.28 11.1 20.82
