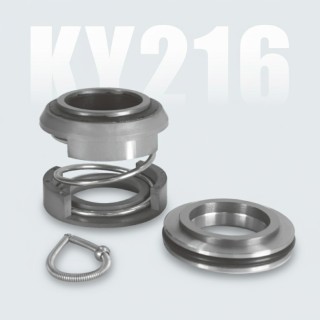

KY TYPE 216, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (SiC/SSiC/TC)
Rotary Ring (SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Retainer (Steel and plastic or Cast Aluminum Alloy).

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5MPa
Speed: ≤ 5 m/Sec

Download KY TYPE KY216, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

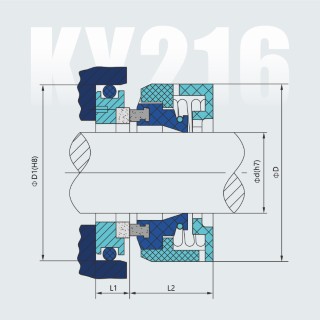

Part Numbers d D D1 L1 L2
KY TYPE 216-20 20 42.5 55.5 11 25.7
KY TYPE 216-22 22 47 45.5 9 23.8
KY TYPE 216-25 25 54 50.5 10 28.8
KY TYPE 216-28 28 54 50.5 10 28.8
KY TYPE 216-30 30 54 50.5 10 28.8
KY TYPE 216-35 35 62 60.5 11 29
