KY TYPE 155C, ROTEN TYPE 5, O Ring Mechanical Seals

Combined Materials:
Stationary Ring (Carbon/SiC/SSiC/TC)
Rotary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Pumps: Water pumps, circulation pumps, etc.
Temperature: -20°C~200°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Download KY TYPE 155C, ROTEN TYPE 5, O Ring Mechanical Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

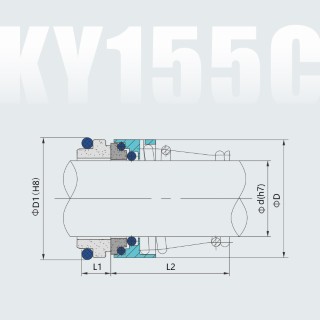

Part Numbers	d	D	D1	L1	L2
KY TYPE 155C-10	10	19	18.1	5.5	20.2
KY TYPE 155C-11	11	22	20.6	5.5	22.2
KY TYPE 155C-12	12	22	20.6	5.5	22.2
KY TYPE 155C-13	13	24	23.1	6	27.2
KY TYPE 155C-14	14	24	23.1	6	27.2
KY TYPE 155C-15	15	28.5	26.9	7	27.2
KY TYPE 155C-16	16	28.5	26.9	7	28.2
KY TYPE 155C-17	17	28.5	26.9	7	28.2
KY TYPE 155C-18	18	32.5	30.9	8	30.2
KY TYPE 155C-19	19	32.5	30.9	8	30.2
KY TYPE 155C-20	20	32.5	30.9	8	30.2
KY TYPE 155C-21	21	37	35.4	8	30.2
KY TYPE 155C-22	22	37	35.4	8	30.2
KY TYPE 155C-23	23	37	35.4	8	32.2
KY TYPE 155C-24	24	37	35.4	8	32.2
KY TYPE 155C-25	25	40.5	38.2	8.5	33.2
KY TYPE 155C-26	26	40.5	38.2	8.5	33.2
KY TYPE 155C-27	27	40.5	38.2	8.5	33.2
KY TYPE 155C-28	28	46.5	43.3	9	36.2
KY TYPE 155C-29	29	46.5	43.3	9	37.2
KY TYPE 155C-30	30	46.5	43.3	9	37.2
KY TYPE 155C-31	31	46.5	43.3	9	37.2
KY TYPE 155C-32	32	46.5	43.3	9	37.2
KY TYPE 155C-33	33	56.5	53.5	11.5	48.2
KY TYPE 155C-34	34	56.5	53.5	11.5	48.2
KY TYPE 155C-35	35	56.5	53.5	11.5	48.2
KY TYPE 155C-37	37	56.5	53.5	11.5	48.2
KY TYPE 155C-38	38	63	60.5	11.5	48.2
KY TYPE 155C-39	39	63	60.5	11.5	48.2
KY TYPE 155C-40	40	63.5	60.5	11.5	48.2
KY TYPE 155C-42	42	63.5	60.5	11.5	48.2
KY TYPE 155C-43	43	63.5	60.5	11.5	48.2
KY TYPE 155C-44	44	68.5	65.5	11.5	51.2
KY TYPE 155C-45	45	68.5	65.5	11.5	51.2
KY TYPE 155C-48	48	68.5	65.5	11.5	51.2
KY TYPE 155C-49	49	68.5	65.5	11.5	51.2
KY TYPE 155C-50	50	75	72.5	11.5	55.2
KY TYPE 155C-55	55	75	72.5	11.5	57.2
KY TYPE 155C-60	60	83	79.3	11.5	61.2
KY TYPE 155C-65	65	88	84.5	11.5	63.2
KY TYPE 155C-70	70	93	89.5	11.5	63.2
KY TYPE 155C-75	75	98	94.5	11.5	68.2
KY TYPE 155C-80	80	103	99.5	11.5	70.2
KY TYPE 155C-85	85	117	105.5	13.5	72.2
KY TYPE 155C-90	90	122	111.5	13.5	75.2
KY TYPE 155C-95	95	129	116.5	13.5	75.2
KY TYPE 155C-100	100	135	119.5	13.5	85.2
